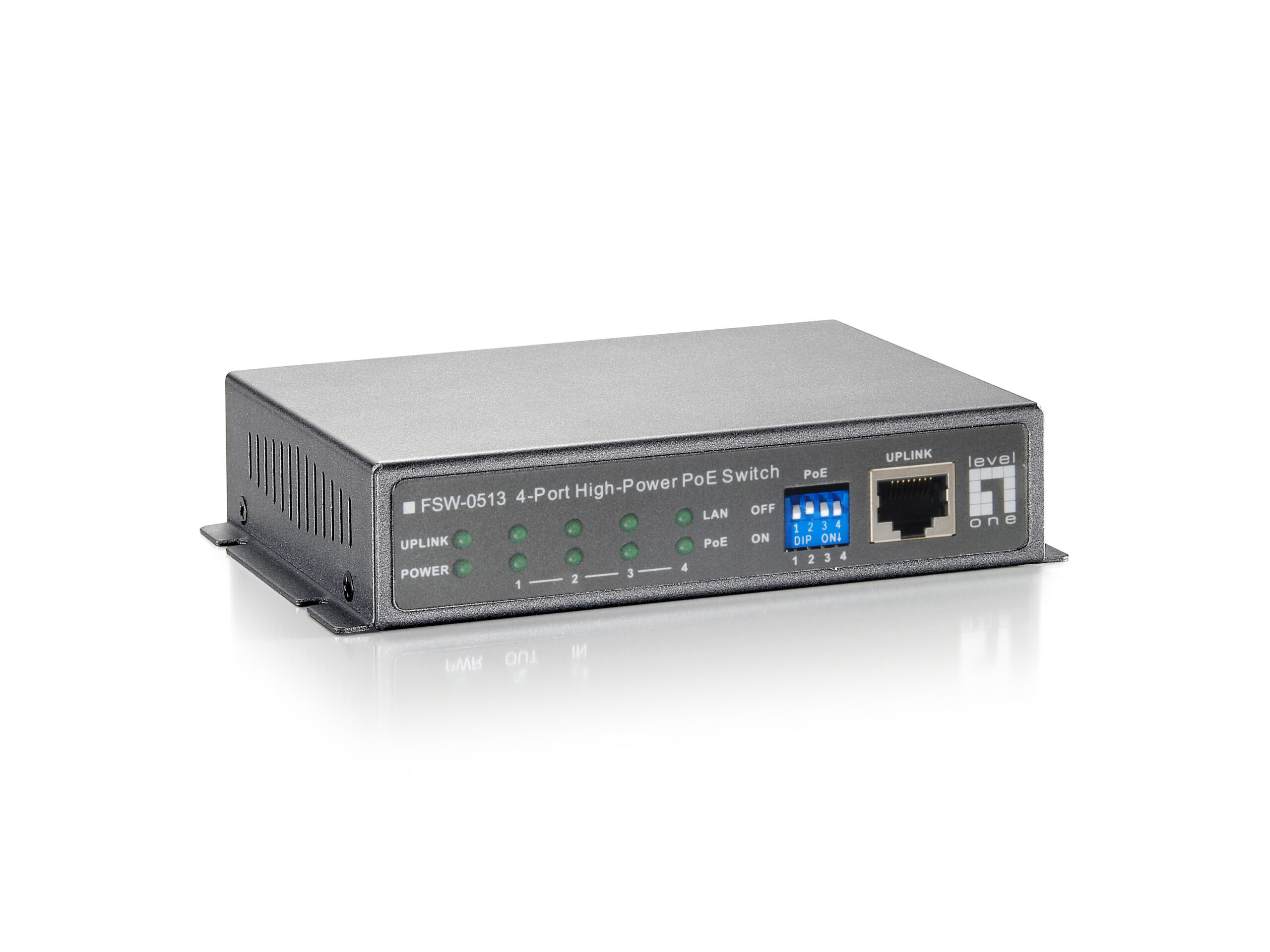

FSW-0513 LevelOne 5-Port Fast Ethernet PoE Switch, 4 PoE Outputs, 120W, power adapter included

FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.

With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513(Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.

Power Protection
FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.
– Provides flexibility of 4 x 10/100BASE-TX PoE ports
– IEEE 802.3af PoE compliant to simplify deployment and installation
– PoE on/off control per port by dip switches
– Auto-detection and protection of non-standard PoE devices
– 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
– IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
– Total PoE power budget: 120W, up to 52W per port
